Custom Seals and Gaskets
Custom Seals and Gaskets

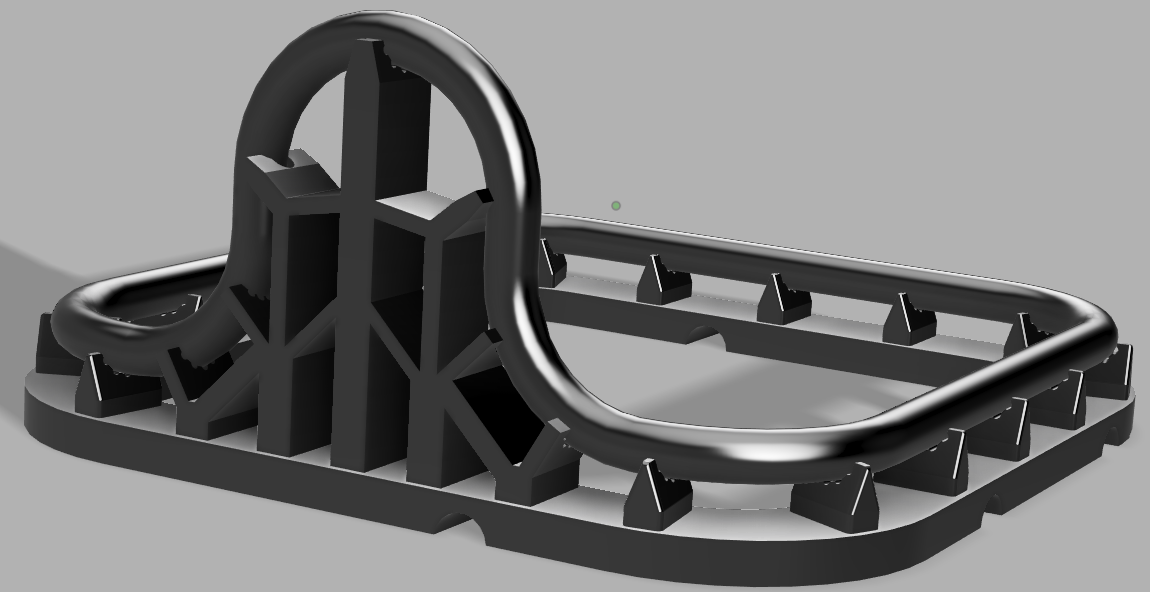

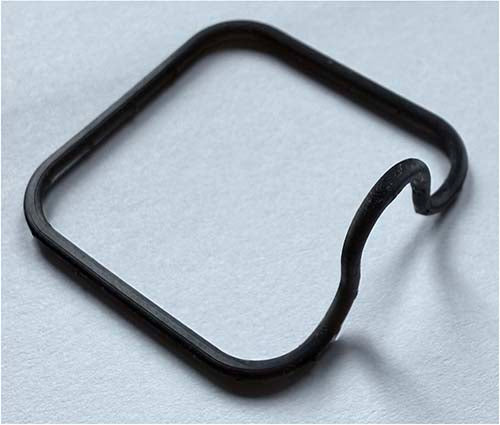

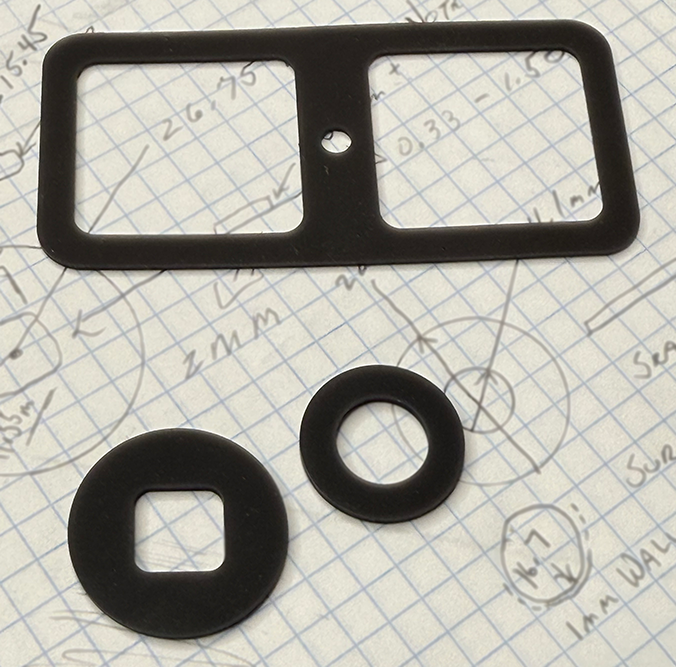

Crafted from soft polymers, custom seals and gaskets provide exceptional flexibility and durability. Designed to meet your unique geometry, it eliminates the need to conform to standardized sizes or minimum order quantities, ensuring a perfect fit and repeat use. Ideal for specialized applications or when the right product is unavailable, these seals and gaskets deliver superior sealing performance tailored to your specifications.
- Formlabs Silicone 40A
- Formlabs Flexible 80A
To get a quote, add your project info, design files, and quantity to your cart.
Couldn't load pickup availability
Flexible Materials
BenchRebel currently offers three flexible materials. The properties of a given raw material vary greatly in their strengths, and no single property trumps all others. For example, Silicone 40A and Flexible 80A can withstand flex fatigue by orders of magnitude greater than Elastic 50A, based on Ross Flex Fatigue testing (ASTM D1052). Alternatively, Flexible 80A has the shortest elongation at break (120%) compared to Elastic 50A (160%) and Silicone 40A (230%). In a third example, Flexible 80A has double the tear strength of the other two materials referenced. Finally, for soft seals and gaskets, Silicone 40A and Flexible 80A are up to the task but Elastic 50A is not recommended.
The examples highlighted above, and many more variables, will impact how a product is designed and manufactured. To help with that decision, design guidelines are provided below.
Design Guidelines
Silicone 40A |
Elastic 50A |
Flexible 80A |
|
|
|
|
|
Silicone 40A Resin is the first accessible 100% silicone 3D printing material, using Formlabs’ patent-pending Pure Silicone Technology™. Eliminate molding and labor-intensive casting processes by directly printing soft, pliable, and durable silicone parts. |
Elastic 50A Resin V2 is a soft, translucent elastomer ideal for prototyping parts normally produced with softer rubbers and silicones. Parts printed in Elastic 50A Resin will bend, stretch, compress, and hold up to repeated cycles without tearing, and spring back quickly to their original shape. |
Flexible 80A Resin is a stiff, soft-touch, translucent elastomer with an 80A Shore durometer ideal for prototyping rubber-like parts with the flexibility of harder rubber or TPU. Parts printed in Flexible 80A Resin can withstand bending, flexing, and compression, even through repeated cycles. |
|
|
|
|
Supported wall thickness Unsupported wall thickness Shallow angles Horizontal span/bridge Vertical wire diameter Clearance between adjacent parts Hole diameter |
Supported wall thickness Unsupported wall thickness Shallow angles Horizontal span/bridge Vertical wire diameter Clearance between adjacent parts Hole diameter |
Supported wall thickness Unsupported wall thickness Shallow angles Horizontal span/bridge Vertical wire diameter Clearance between adjacent parts Hole diameter |
